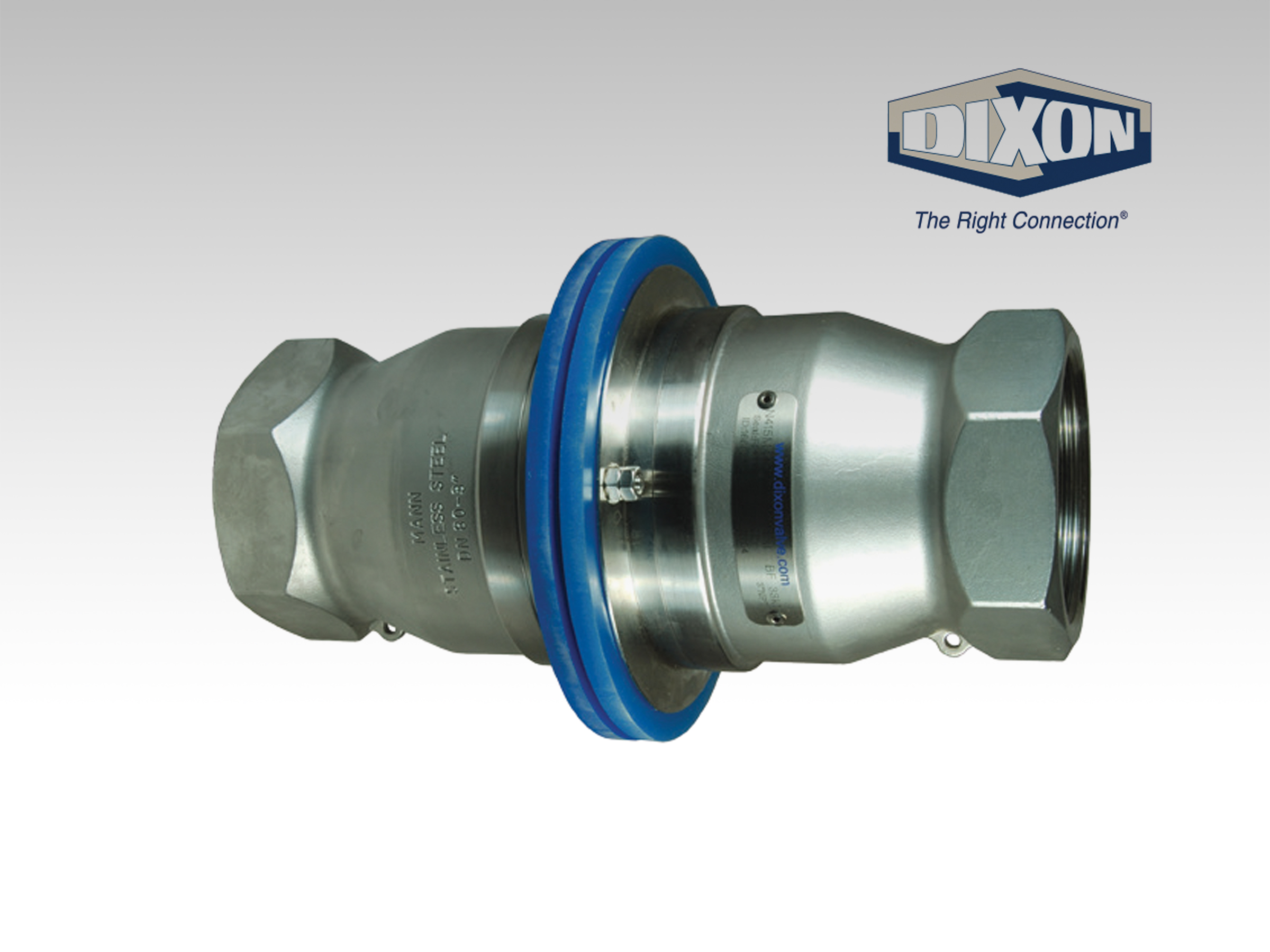

Safety Break-away Coupling

Safety Break-away Coupling

0.00

Breaking Bolt Series from Dixon: Marine Version

Applications:

  • Designed to minimize spillage and damage associated with pull-away incidents

  • Typical applications include: ship-to-offshore platform and ship-to-ship product transfer operations

  • Designed to be installed within a hose string where the coupling will have a length of hose attached to both sides

Features:

  • Coupling automatically senses an excessive load, closes the valves and disconnects, release is executed when force causes bolts to break

  • Working pressure: 360 PSI at ambient temperature (70°F)

  • 316T1 stainless steel body with FKM (FPM) O-rings

  • Female NPT is standard, optional ANSI / DIN flanges or male NPT are available
