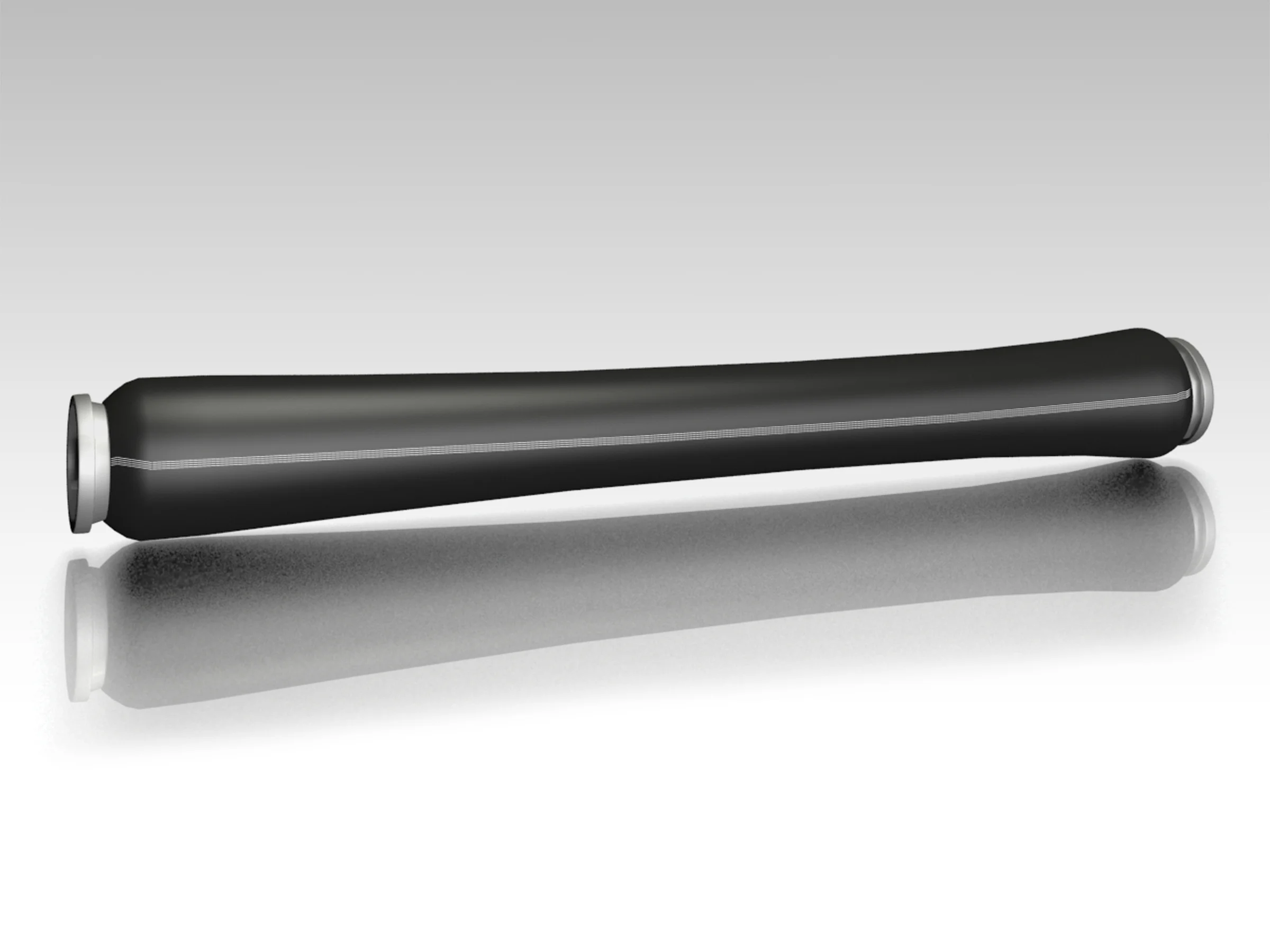

Submarine Offshore Hose with Special Reinforced End for Connection to Plem

Submarine Offshore Hose with Special Reinforced End for Connection to Plem

0.00

SPEC 070-3114

Suction & Discharge 225 PSI WP

Application:

  • Transfer of petroleum products offshore plem connection

Hose Construction:

  • Tube: oil resistant synthetic rubber

  • Reinforcement: multiple plies of synthetic cord and high-tensile steel wire helix

  • Cover: black, oil abrasion and ozone resistant CR+

  • Working Temperature -40°F to 250°F

  • 5 to 1 Safety Factor

  • Comes standard with built-in nipples

  • Max Length: 50 ft.

Design Features:

  • White band on reinforced end for identification

  • Maximum flow velocity 50 feet per second

  • Maximum temporary elongation 2.5%

  • Maximum permanent elongation 0.7%

  • Nipples conform to API-5L Grade A

  • Flanges conform to ANSI Standards

  • Certified welding to API-1104

  • All exposed surfaces of nipples and flanges coated with zinc or epoxy paint, excluding flange facings

  • Hoses less than 12” inside diameter come standard with welded slip-on flanges, hoses 12” inside diameter and greater come standard with welded weld neck flat face flanges, unless otherwise requested.

Electrical Continuity:

  • Electrical continuity on all standard hoses except tanker rail and underbouy hoses

Get Purchasing Information
ID
(inches)
OD (inches)
Section A
OD (inches)
Section B
OD (inches)
Section C
MBR
(inches)
Weight in Air (lbs)
30' Length
Weight in Air (lbs)
35' Length
Weight in Air
(lbs/ft.)
6 11 8 10 35 671 770 22
8 14 10 12 48 1,023 1,166 34
10 16 12 14 60 1,298 1,485 43
12 19 14 17 73 2,024 2,310 67
16 23 18 21 98 2,904 3,300 97
20 28 22 26 122 4,664 5,280 155
