Vibrator Hose

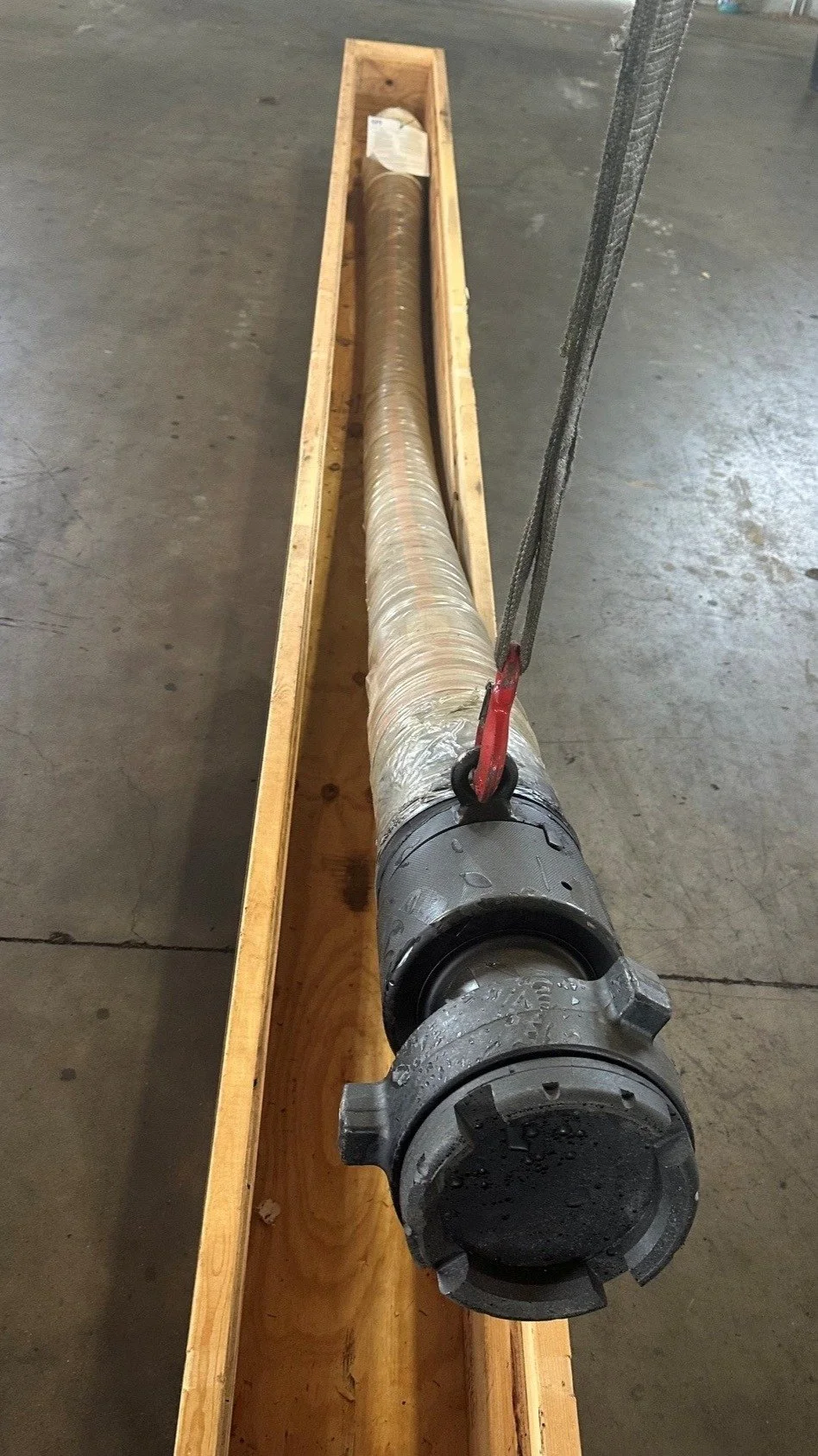

Copper State Rubber Vibrator Hose
A vibrator hose connects the mud pump to the rigid standpipe, routing drilling fluid through the pulsation dampener and isolating the vibration generated by the mud pump's reciprocating motion before fluid travels up the derrick to the rotary hose and swivel. Because it sits at the start of the circulation system, a failure here disrupts pressure delivery before fluid ever reaches the standpipe.
Why Pressure Rating and Certification Matter
Not every vibrator hose is built for the same conditions. Two factors separate a reliable hose from a liability: working pressure and certification.
Working pressure determines what the hose can safely handle before failure becomes a risk. Certification confirms the hose was built and tested to a recognized standard, not just a manufacturer's internal claim.
API 7K is the standard that applies to vibrator and rotary drilling hose alike, and it is the certification operators and drilling contractors look for when qualifying a supplier.
Built for Continuous Flexing
Copper State Rubber's Vibrator Hose is built on the same API 7K licensed (Certificate No. 7K-0014) construction CSR uses across its rotary and vibrator hose line, qualified to FSL1 and FSL2, and shipping standard as FSL2, Temperature Range 3. It is rated up to 7,500 PSI working pressure and tested to 11,250 PSI.
Positioned between the mud pump and the standpipe, the hose absorbs continuous mechanical flexing from the pump's reciprocating motion on top of standard pressure containment, which is why the same spiral wire reinforcement and flexible liner construction CSR uses for rotary service carries over directly to vibrator applications. The hose also carries ABS and DNV Type Approval across its full pressure range
Manufactured in the USA
Copper State Rubber manufactures its Vibrator Hose in the United States, at its Avondale, Arizona facility. Manufacturing domestically means CSR controls every stage of production and can move a custom order faster than a supplier sourcing from overseas. For an operator facing downtime, that difference in lead time can matter even more than price.
Why Choose This Hose
API 7K licensed, Certificate No. 7K-0014
Qualified to FSL1 and FSL2; ships standard as FSL2, Temperature Range 3
Rated up to 7,500 PSI working pressure
Tested to 11,250 PSI
ABS and DNV Type Approved
Backed by a 3-year limited warranty
FAQs
-
A vibrator hose provides the flexible connection between a rig's mud system and its vibrating equipment, including shale shakers and mud agitators. It handles both pressure and continuous mechanical flexing simultaneously.
-
CSR's Vibrator Hose is API 7K licensed (Certificate No. 7K-0014) and qualified to FSL1 and FSL2.
-
The hose is rated up to 7,500 PSI working pressure and tested to 11,250 PSI.
-
Maximum length is 200 feet.
-
The hose operates from -20°F to 250°F.
-
At our facility in Avondale, Arizona.
-
A vibrator hose sits between the mud pump and the standpipe, isolating vibration from the pump's reciprocating motion. A rotary drilling hose sits between the standpipe and the top drive or swivel, delivering fluid into the rotating drill string. Both are built on the same API 7K licensed construction.
Request a Quote
If you are sourcing vibrator hose for an upcoming project, our Houston-based team can walk you through specifications and availability. Contact us to request a quote or speak with our team directly.
