Fireproof/Multipurpose Hose
Fireproof/Multipurpose Hose
$0.00
SPEC 070-3175FP
Service Fuel/Liquid Mud/Deepwell/Firemain and Deluge
Suction & Discharge 250 and 400 PSI WP
Application:
Transfer of fuel/liquid mud/deepwell/firemain and deluge
Compatible with 60% aromatics content
Hose Construction:
Tube: black oil resistant Buna N good for 60% aromatic content
Reinforcement: multiple plies of synthetic textile and helix steel wire
Cover: black, fire resistant CR+ rubber
Working Temperature -40°F to 250°F
Max Aromatics 60%
4 to 1 Safety Factor
Full Vacuum Service
Meets ISO 15540:1999 Fire Requirements
ABS Type Approved
Max Length: 200 ft.

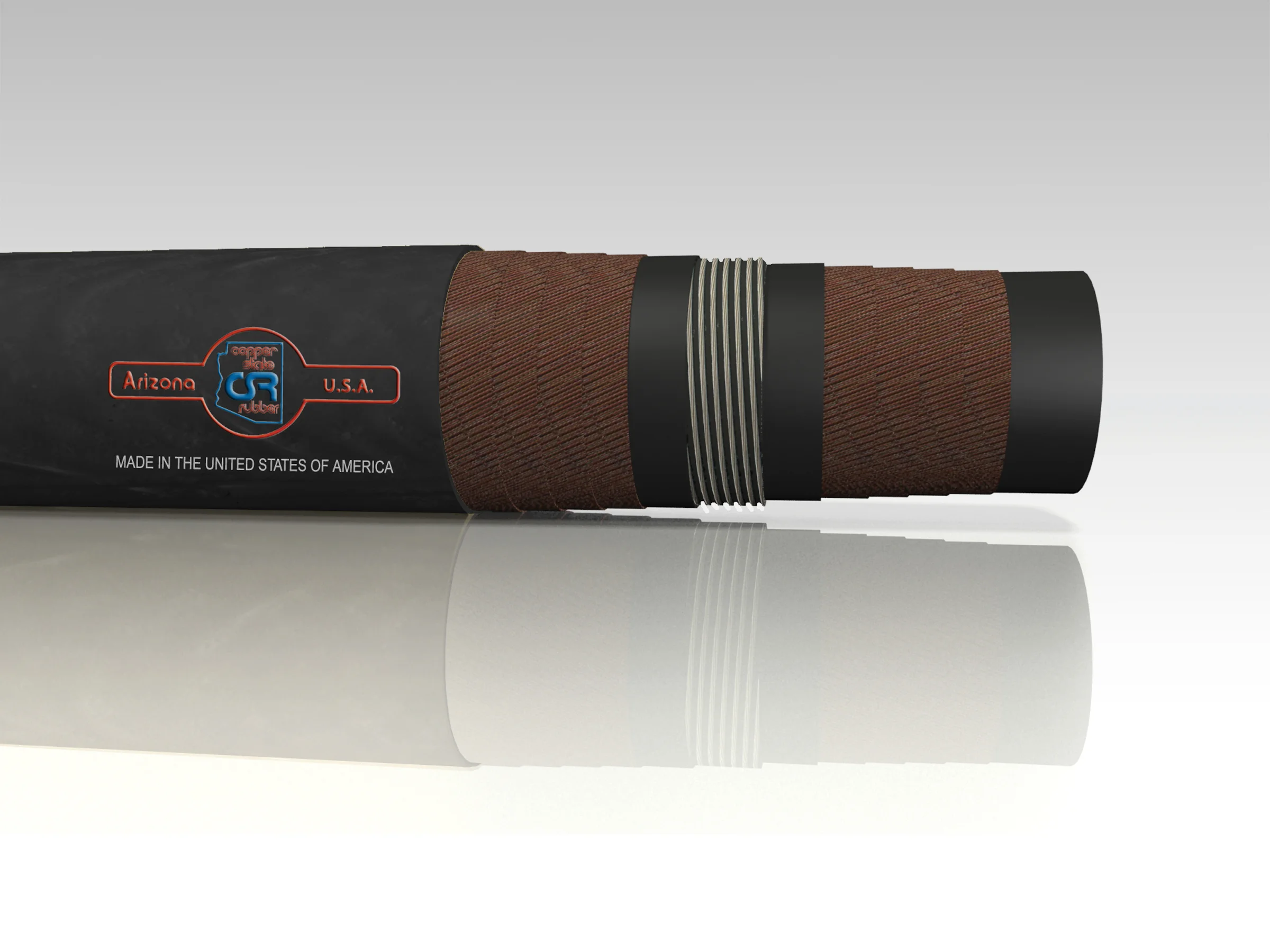

*Note: fire layer is omitted in hose rendering
| ID (inches) | OD (inches) | MBR (feet) | Working Pressure (PSI) | Weight (lbs/ft.) |
| 2 | 3.2 | 12 | 200/400 | 3.3 |
| 3 | 4.3 | 18 | 200/400 | 4.5 |
| 4 | 5.3 | 24 | 200/400 | 6.0 |
| 5 | 6.5 | 30 | 200/400 | 7.3 |
| 6 | 8.1 | 42 | 200/400 | 13.6 |
| 8 | 10.1 | 48 | 200/400 | 18.6 |
| 10 | 12.2 | 54 | 200/400 | 25.8 |
| 12 | 14.7 | 66 | 200/400 | 35.4 |
