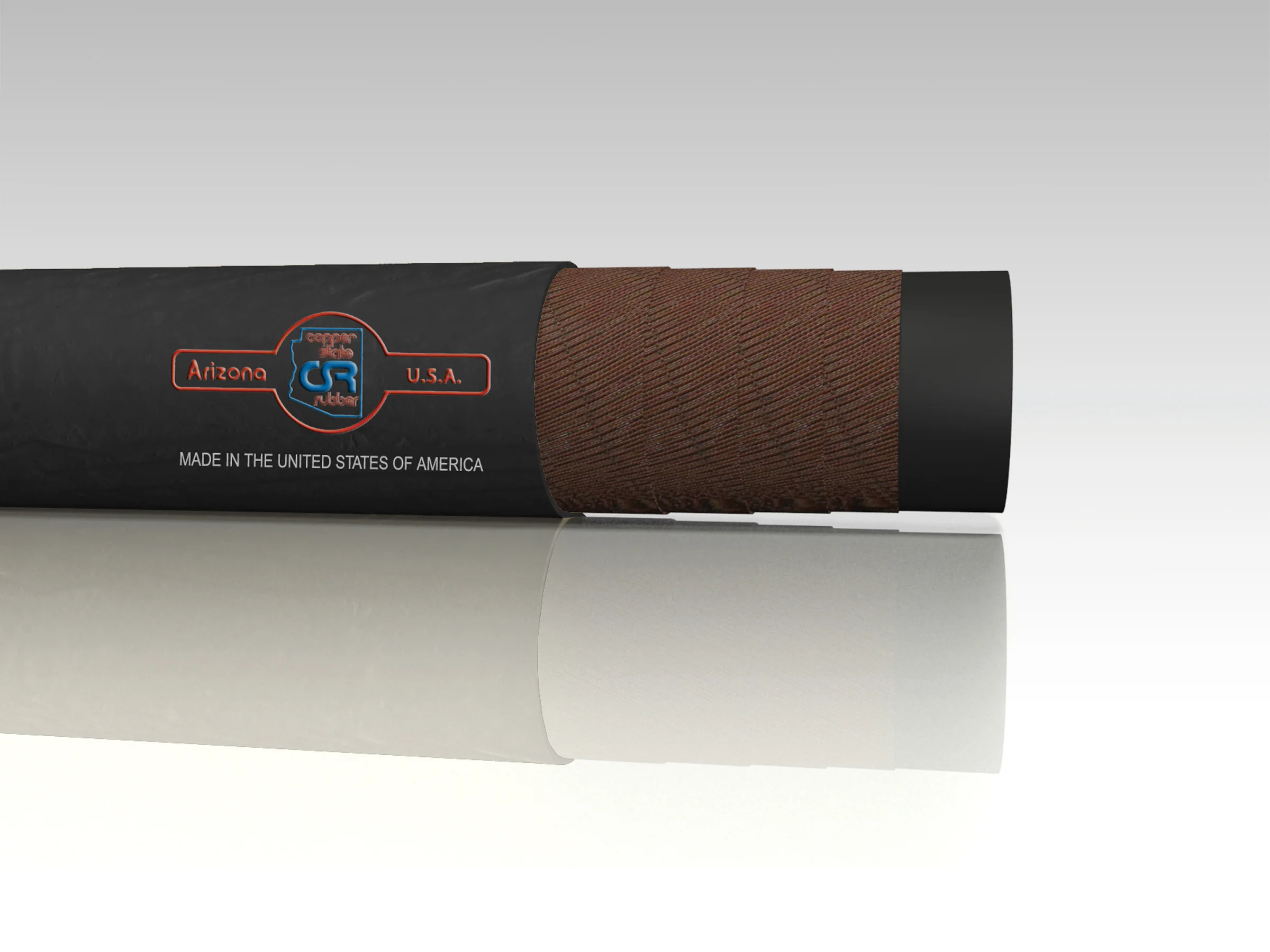

Sand Suction Hose
Sand Suction Hose
$0.00
SPEC 070-1387
Suction & Discharge
Application:
Sand suction hose for use on dredges offering a flexible connection between hard piping and pumps
Hose Construction:
Tube: gum rubber – available in 1/4”, 3/8” & 1/2” thickness
Reinforcement: multiple plies of synthetic textile and steel helix wire
Cover: black, oil abrasion and ozone resistant CR+
Working Temperature -40°F to 250°F
Max Length: 200 ft.
| ID (inches) | OD (inches) | Ply | Weight (lbs/ft.) |
| 6.0 | 8.2 | 6 | 17.6 |
| 6.6 | 8.8 | 6 | 19.1 |
| 8.0 | 10.3 | 8 | 23.6 |
| 8.8 | 11.0 | 8 | 30.0 |
| 10.0 | 12.7 | 10 | 35.6 |
| 10.8 | 13.9 | 10 | 38.2 |
| 12.0 | 14.9 | 12 | 43.7 |
| 12.8 | 15.6 | 12 | 46.1 |
| 14.0 | 8.9 | 12 | 49.1 |
| 15.0 | 8.9 | 12 | 55.2 |
| 16.0 | 18.9 | 12 | 60.3 |
| 18.0 | 20.9 | 12 | 66.0 |
