Ultra High Pressure Shoreflex Oil Suction and Discharge Hose
Ultra High Pressure Shoreflex Oil Suction and Discharge Hose
$0.00
SPEC 070-1919
Suction & Discharge 500PSI WP
Application:
Transfer of petroleum products at higher pressures

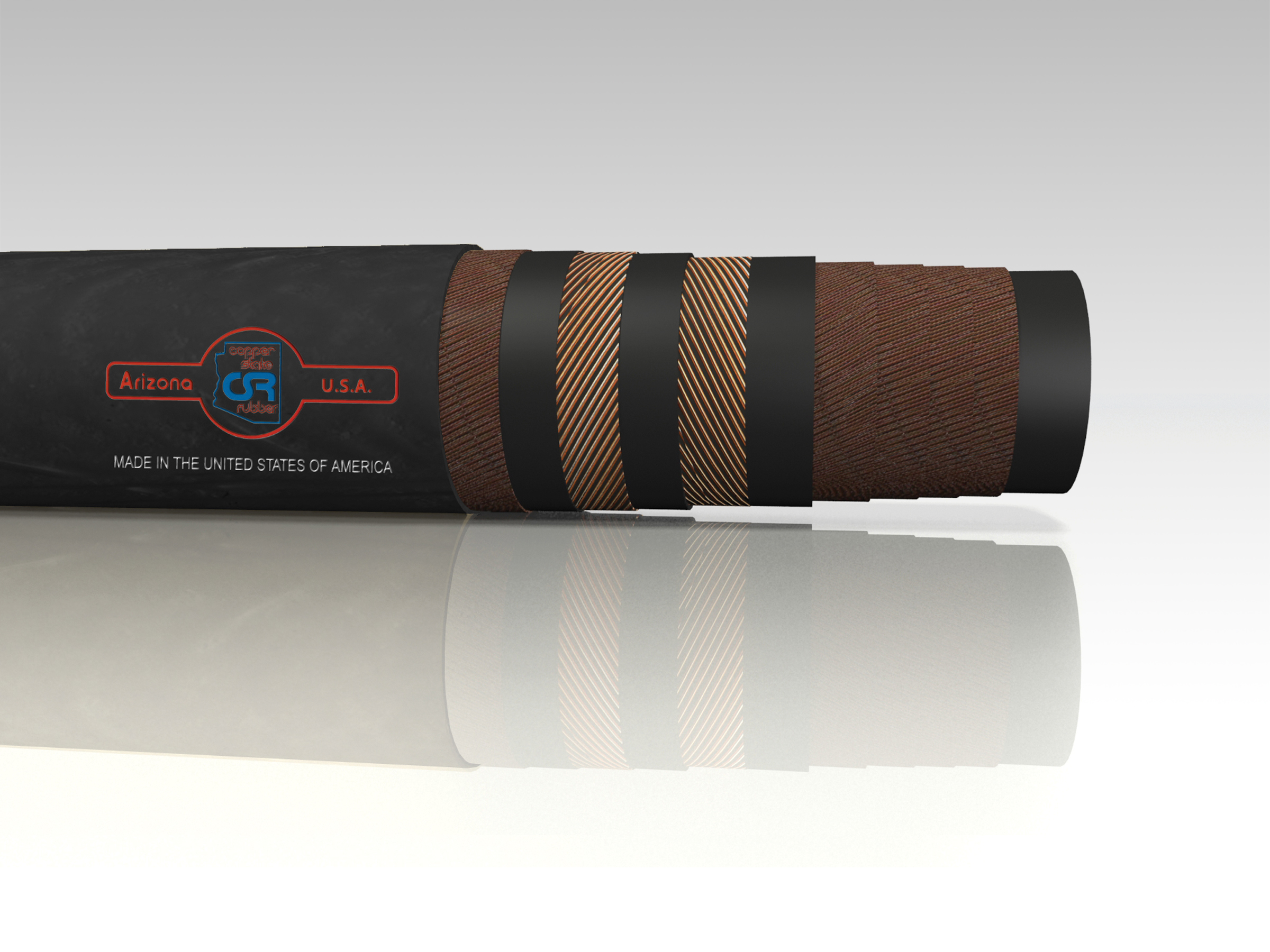

Hose Construction:
Tube: black oil resistant Buna N
Reinforcement: multiple plies of synthetic textile high tensile spiral wire same as our choke & kill hose
Cover: black, oil abrasion and ozone resistant CR+
Working Temperature -40°F to 250°F
Full Vacuum Service
Burst pressures in excess of 6,000PSI
Available with higher working pressures
Alternate liners available HNBR and Viton
Max Length: 200 ft.
| ID (inches) | OD (inches) | MBR | Working Pressure (PSI) | Test Pressure (PSI) | Weight (lbs/100 ft) |
| 2.5 | 4.0 | 30 | 500 | 750 | 500 |
| 3 | 4.5 | 30 | 500 | 750 | 600 |
| 4 | 5.5 | 36 | 500 | 750 | 800 |
| 6 | 7.5 | 42 | 500 | 750 | 1,000 |
| 8 | 9.5 | 54 | 500 | 750 | 1,200 |
| 10 | 11.5 | 60 | 500 | 750 | 1,400 |
