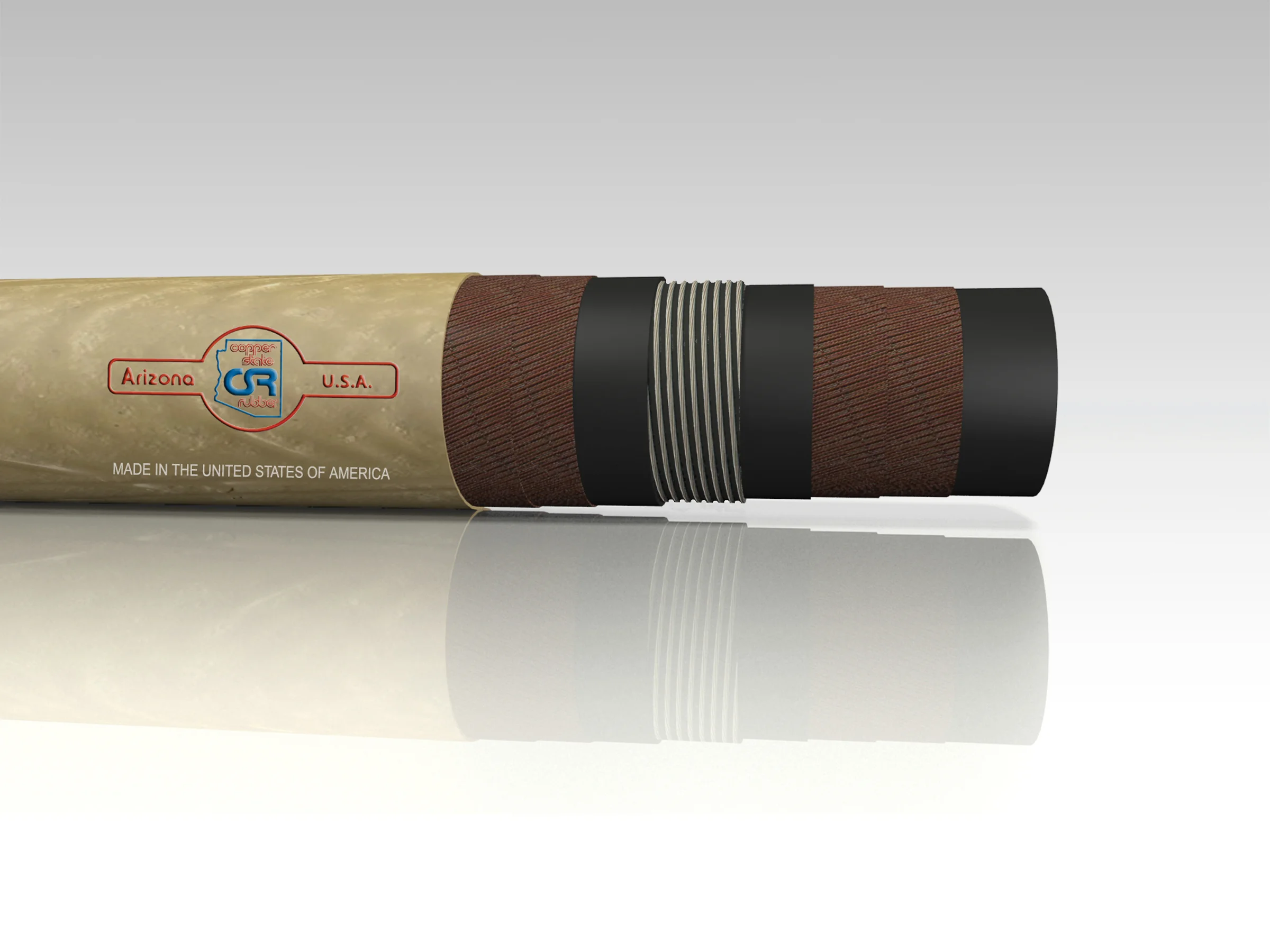

Fuel Transfer Hose
Fuel Transfer Hose
$0.00
SPEC 070-1175
Loading/Deck Hose | Service Fuel/Oil/Oil Base Mud
Suction & Discharge 250 PSI WP*
Application:
Transfer of fuel/oil/oil base mud
Compatible with 60% aromatics content
Hose Construction:
Tube: black oil resistant Buna N good for 60% aromatic content
Reinforcement: multiple plies of synthetic textile and helix steel wire
Cover: tan, oil abrasion and ozone resistant CR+
Working Temperature -40°F to 250°F
Max Aromatics 60%
4 to 1 Safety Factor
Full Vacuum Service
Exceeds US Coast Guard Regulations
Max Length: 200 ft.
| ID (inches) | OD (inches) | MBR (feet) | Working Pressure (PSI) | Weight (lbs/ft.) |
| 2 | 2.9 | 12 | 250 | 2.1 |
| 2.5 | 3.4 | 18 | 250 | 2.5 |
| 3 | 3.9 | 18 | 250 | 2.9 |
| 4 | 5.2 | 24 | 250 | 4.2 |
| 5 | 6.3 | 30 | 250 | 5.9 |
| 6 | 7.5 | 36 | 200 | 8.1 |
| 8 | 9.4 | 48 | 100 | 10.9 |
| 10 | 11.5 | 74 | 100 | 12 |
| 12 | 13.5 | 78 | 100 | 14 |
