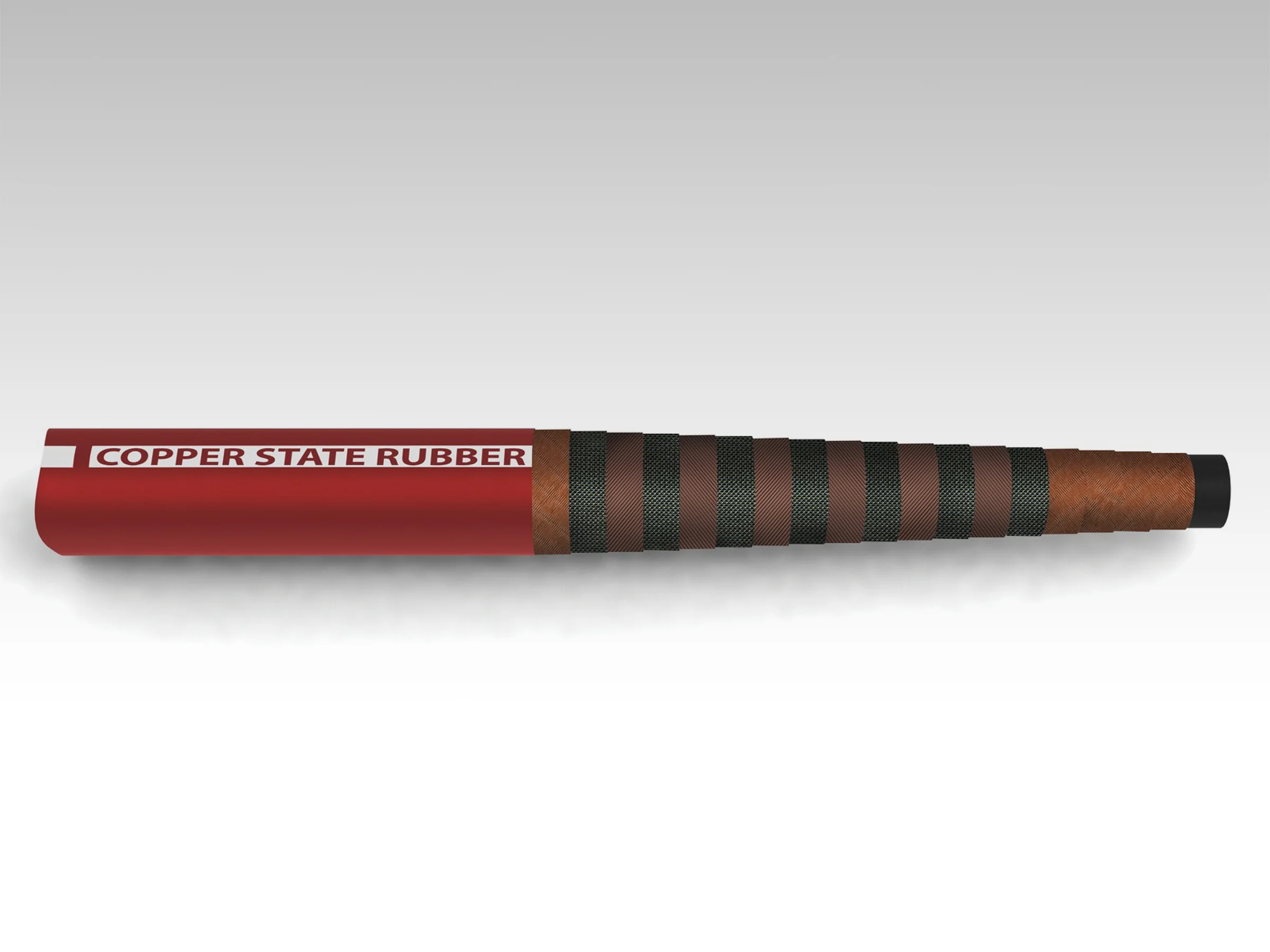

Multi-Purpose Heavy Duty Oilfield Service Hose
Multi-Purpose Heavy Duty Oilfield Service Hose
SPEC 070-2WE0068
Designed for service as discharge hose for reverse circulations, acidizer/cement service solution equipment, mud tank jetting, instrument blow down service, and rotary/vibrator service on portable drilling units, workover rigs and seismograph equipment.
Exceeds requirements of API 7K for minimum safety factor: 2½ to 1 burst pressure.
Hose Construction:
Tube: black neoprene, high-grade (cr+)
Reinforcement: multiple spiral plies of special high tensile steel wire, each separated by a rubber layer
Cover: MSHA accepted oil, weather and abrasion-resistant red synthetic rubber cover
Synthetic outer cover added for abrasion resistance
Optional: stainless steel outer protective armor available
Working Temperature: -40°F to +250°F (-40° to +121°C)
H2S suitable with terminating connections meeting requirements of MR-01-75, latest edition
Also available with 7500 PSI WP – Spec 2 WEO 168
| ID (inches) | OD (inches) | MBR (inches) | Wire Layers | Working Pressure (PSI) | Min Burst (PSI) | Weight (lbs/ft.) |
| 2 | 3 | 25 | 6 | 5,000 | 20,000 | 6 |
